TITAN shipping container chassis is mainly used for transporting standard containers, such 20ft, 40ft containers. The shipping container chassis for sale also could be used for transpoting other bulk cargos. The length of the shipping container chassis is 15m, TITAN also could offer other different parameters, which is up to customers actual needs.
TITAN shipping container chassis for sale main beam is made of Q345 high stength steel material, which has a better bearing capacity and longer service life.

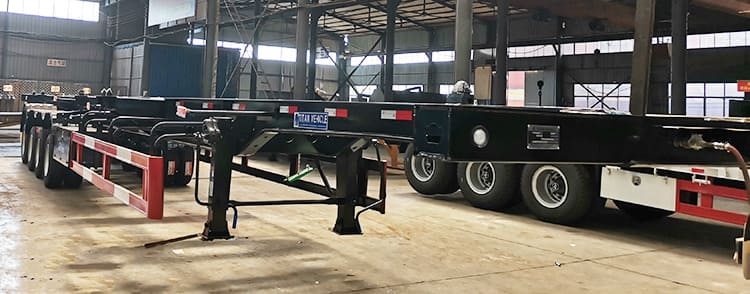

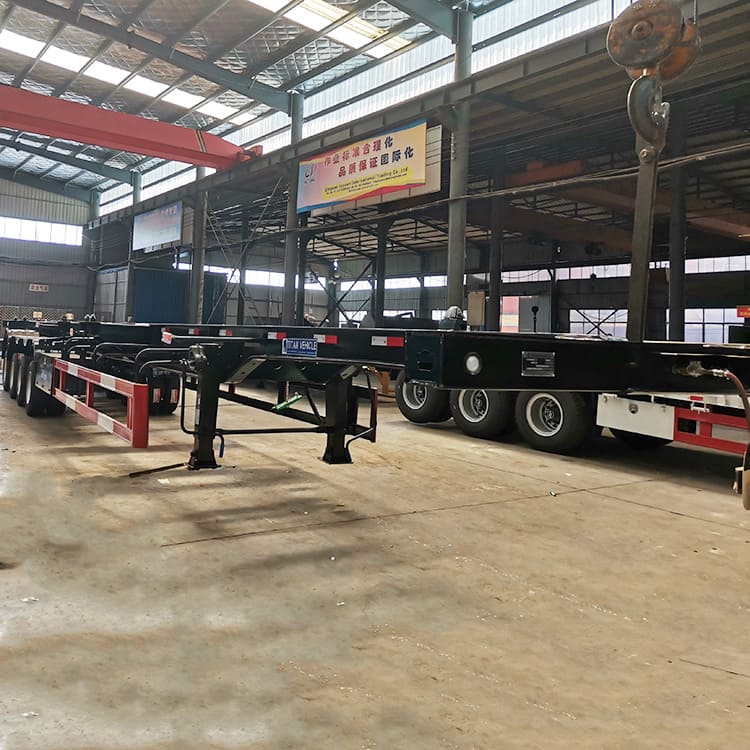

4 Axle Shipping Container Chassis for Sale in Congo
4 Axle Shipping Container Chassis for Sale in Congo
4 Axle Shipping Container Chassis for Sale in Congo

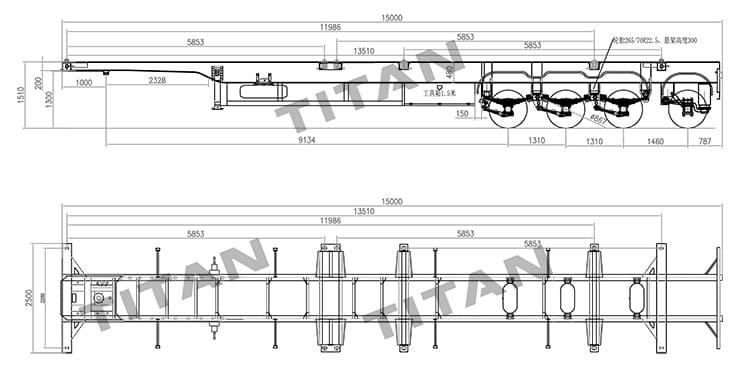

Dimension(mm): 15000x2500x1510mm
Loading capacity(ton): ≤60T
Axles: 4 axle
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

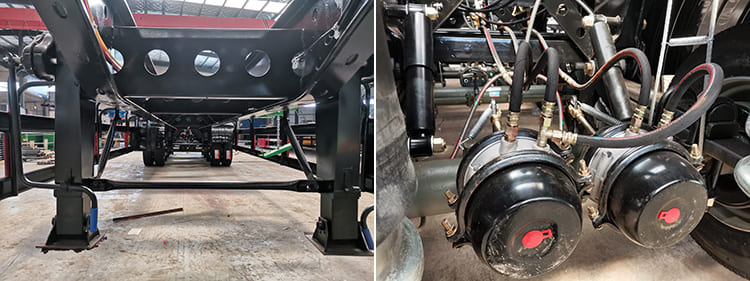

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional

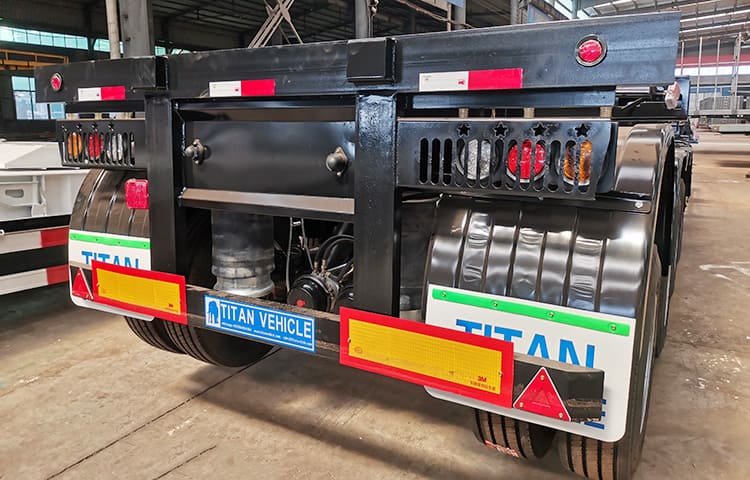

Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
4 Axle Shipping Container Chassis for Sale in Congo

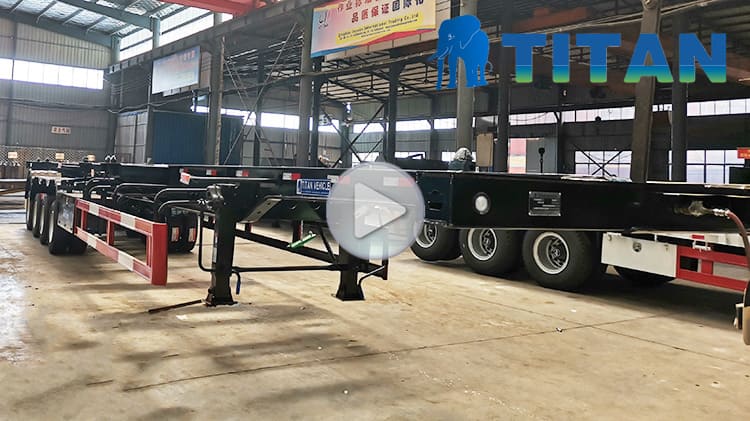

Video of 4 Axle Shipping Container Chassis
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
