TITAN 40ft/ 20ft container chassis for sale will be very helpful for transporting international standard containers in the terminal, this container chassis for sale will be your best choice.
TITAN aslo offer buyers container chassis for sale with different specification, which maxmimumly satisfied with customers needs, for example, the length of the container chassis for sale can be 20ft, 40ft, 48ft, the number of axle could be 2 axle, 3axle, 4 axle, etc, the color could be painted as buyer's request.

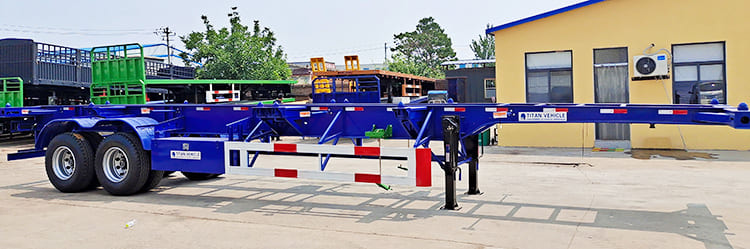

40Ft/ 20Ft Container Chassis for Sale Near Me in Kenya

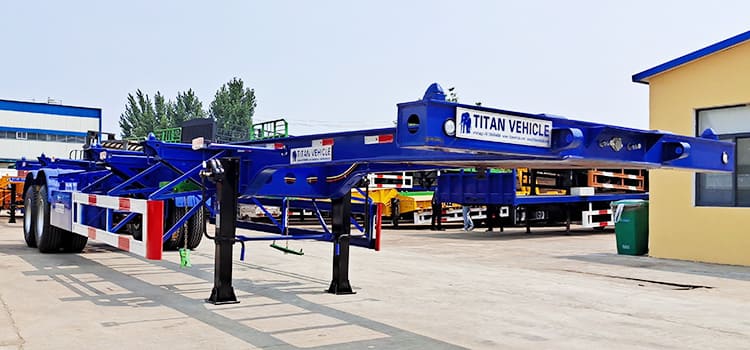

40Ft/ 20Ft Container Chassis for Sale Near Me in Kenya

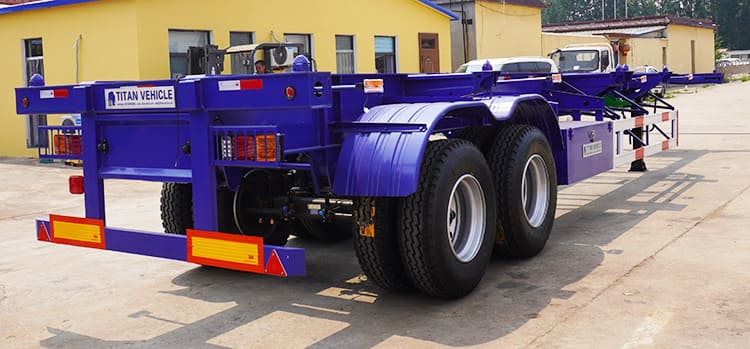

40Ft/ 20Ft Container Chassis for Sale Near Me in Kenya

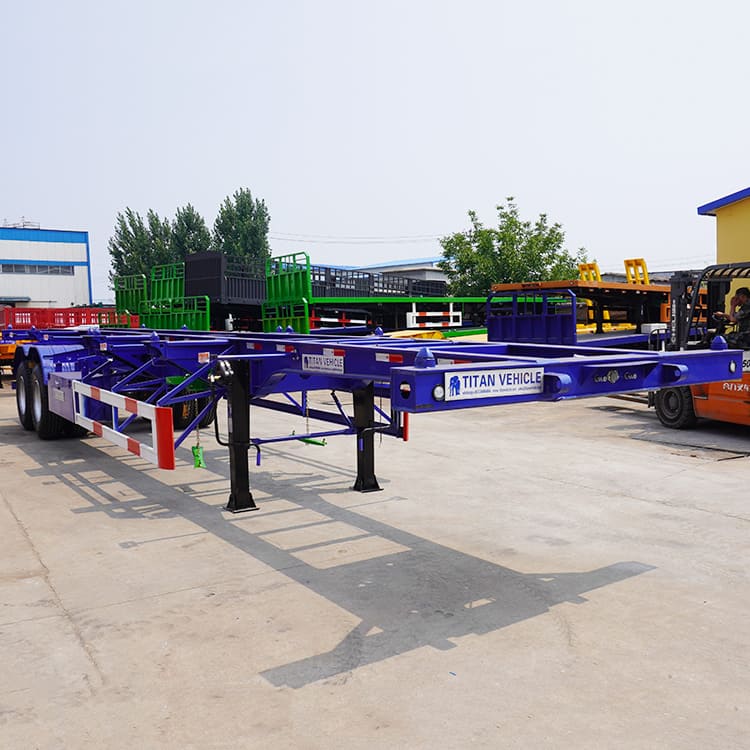

40Ft/ 20Ft Container Chassis for Sale Near Me in Kenya
Dimension(mm): 12300x2500x1520mm
Loading capacity(ton): ≤60T
Axles: 2 axle
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

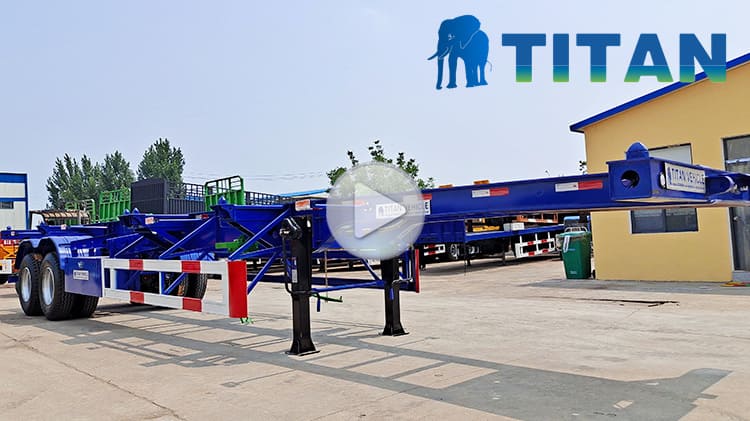

Video of 40Ft/ 20Ft Container Chassis
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
