The 40/20 ft shipping container trailer use the streamline design concept, the appearance of hte shipping container trailer is simple, and the streamline design of this shipping container trailer reduces air resistance. Visually, The 40/20 ft shipping container trailer not only feels the overall coordination and beauty, but also reduces the wind resistance coefficient of the vehicle and reduces fuel consumption, which is both energy-saving and environmentally friendly.
40 /20 Ft Shipping Container Trailer for Sale in Jamaica
40 /20 Ft Shipping Container Trailer for Sale in Jamaica
40 /20 Ft Shipping Container Trailer for Sale in Jamaica

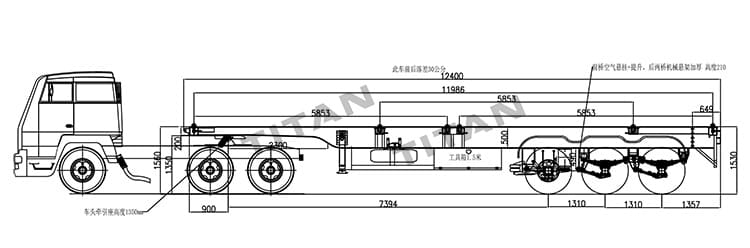

Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
40 /20 Ft Shipping Container Trailer for Sale in Jamaica
The main beam of the shipping container trailer adopts the whole plate blanking and integral molding, the utilization rate of the steel plate is low, and there is no welding in the middle, which makes the beam high in strength, light in weight, stronger in load capacity and longer in service life.
The jost brand landing gear is selected for shipping container trailer, which are durable, stable and reliable, and are more suitable for long terms container transportation
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
