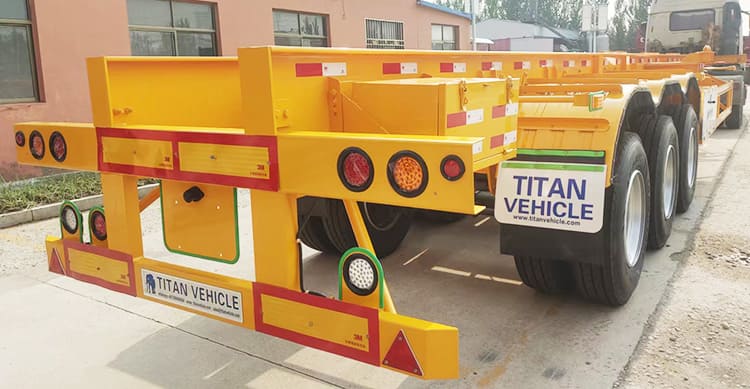

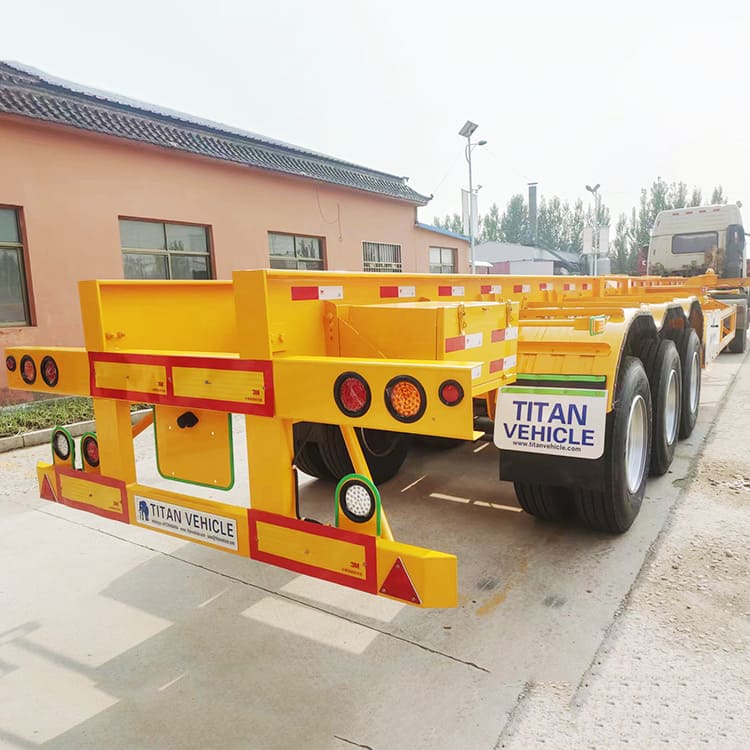

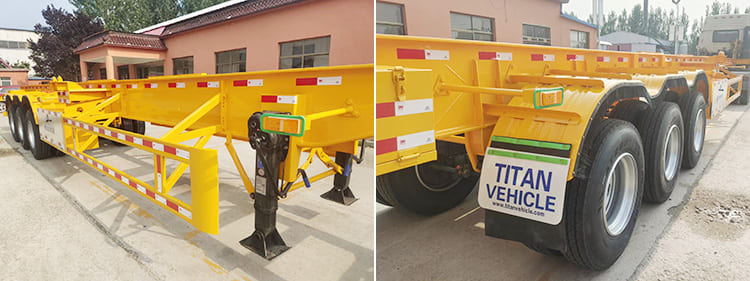

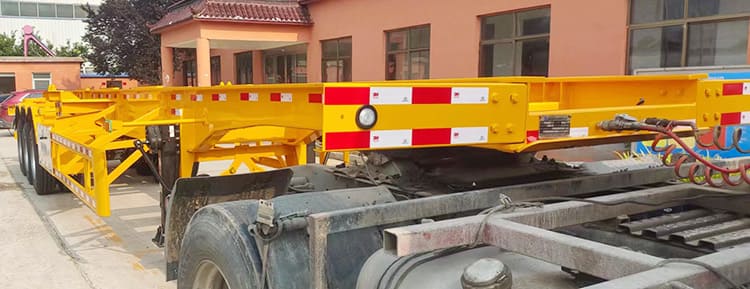

TITAN 3 axle 40ft skeleton container trailer commonly used for the transportation of various containers, this model could transport two 20ft containers or one 40ft container. And TITAN skeleton trailer mainly used in the logistics system of ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.
3 Axle 40Ft Skeleton Container Trailer for Sale Price
3 Axle 40Ft Skeleton Container Trailer for Sale Price
3 Axle 40Ft Skeleton Container Trailer for Sale Price
Dimension(mm): 12500x2500x1520mm
Loading capacity(ton): ≤60T
Axles: 3 axle
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

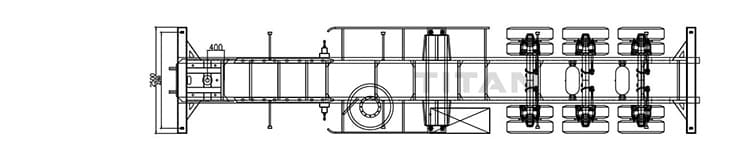

Drawing of the 3 Axle 40Ft Skeleton Container Trailer for Sale

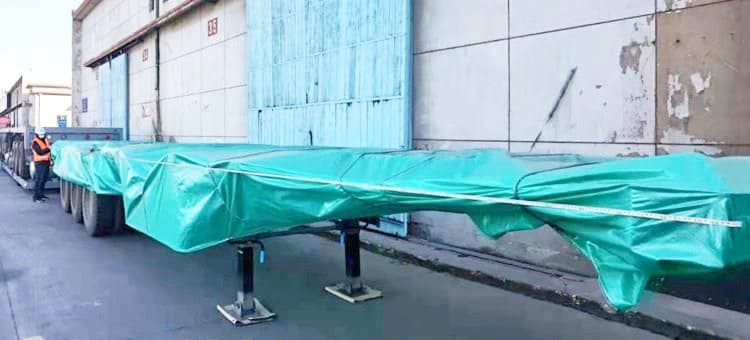

Package of skeleton trailer for sale
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
