Designed by experienced manufacturers for intensive heavy-duty transport, the low loader trailer is engineered to perform reliably in sectors such as infrastructure construction, mining operations, and large-scale industrial projects. Its structural design allows it to transport oversized equipment including excavators, crawler cranes, transformers, and prefabricated steel components while maintaining stability and operational safety.

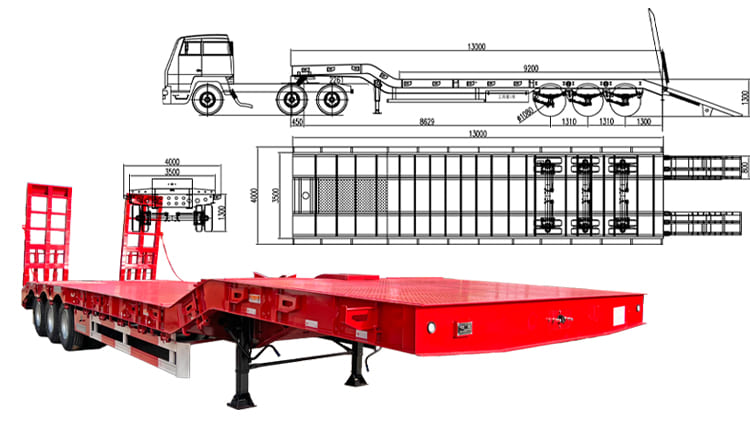

Overall Dimension: 13000mm*4000mm*1300mm
Load Capacity: 80 ton
Floor Plate: 5mm thick pattern plate

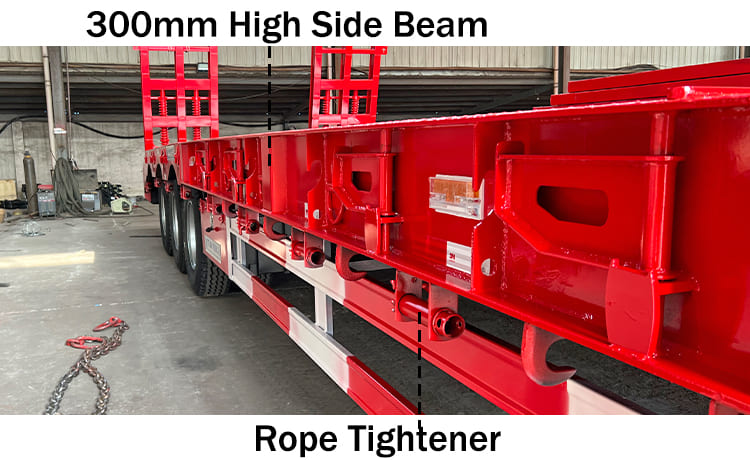

Side Beam: 300mm high, 8mm thick
Axles: 3 axles, 13ton
Tire: 12 units, 12R22.5

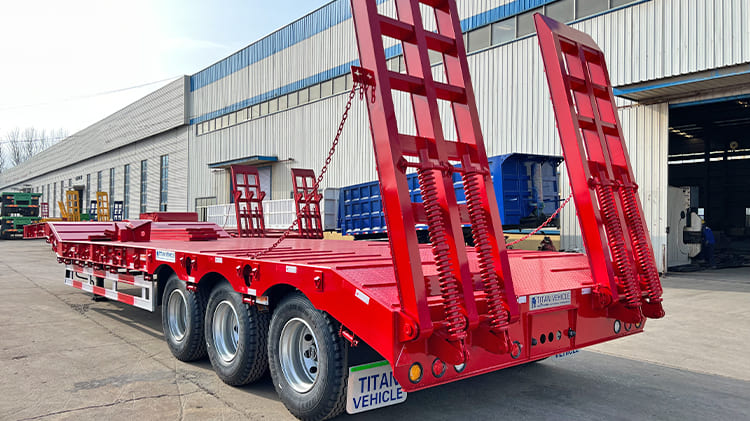

Ramp: Spring Ramp
Landing Gear: 28 Ton
Suspension: mechanical suspension

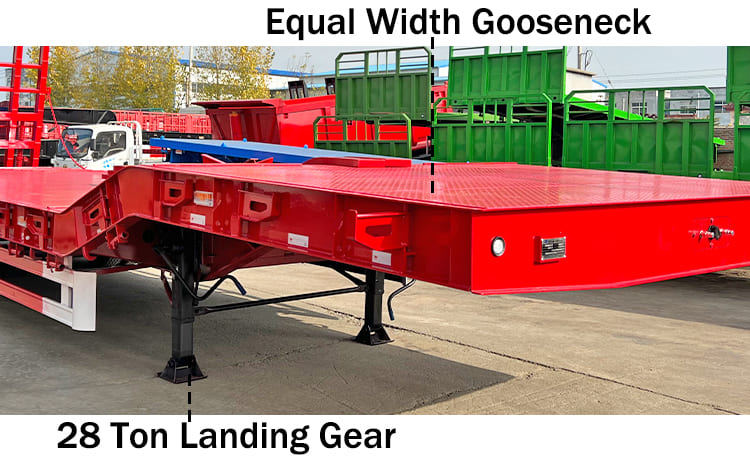

A defining design feature of the low loader trailer for sale is its gooseneck structure with a uniform width that transitions smoothly into the main deck. By eliminating abrupt changes in frame width, this configuration expands the usable loading area and simplifies equipment alignment. As a result, loading and unloading processes become more efficient, especially when operators in Guinea face tight project timelines or limited site space.
To accommodate high-capacity transport requirements, the low loader trailer adopts a low center-of-gravity layout. This stability advantage is particularly important for operations in Guinea, where transport routes may include uneven surfaces, sharp curves, or temporary access roads. The reinforced chassis ensures that the tri axle low loader trailer for sale retains its structural integrity under both heavy loads and variable climate conditions.
The primary frame of the low loader trailer for sale is fabricated from high-strength steel selected for its superior tensile performance. Compared with ordinary structural steel, this material resists bending and deformation more effectively under concentrated loads.
To further strengthen critical stress zones, the gooseneck area is reinforced with a double-layer plate structure, allowing the trailer to withstand sustained pressure during demanding haulage tasks. This robust construction directly supports long service life for the tri axle low loader trailer for sale.
Surface protection is addressed through an advanced finishing process. Every low loader trailer undergoes powder coating followed by high-temperature baking paint, creating a smooth and corrosion-resistant surface. For customers in Guinea, where environmental conditions can accelerate corrosion, this durable coating helps preserve both appearance and structural condition while reducing repainting frequency and long-term maintenance costs.
To improve safety during transport, the tri axle low loader trailer for sale is equipped with a high-visibility LED lighting system. Each lamp is housed in an impact-resistant casing designed to withstand stones and road debris. Anti-theft protection around the lighting assemblies further ensures reliability during long-distance operations or overnight parking in Guinea.

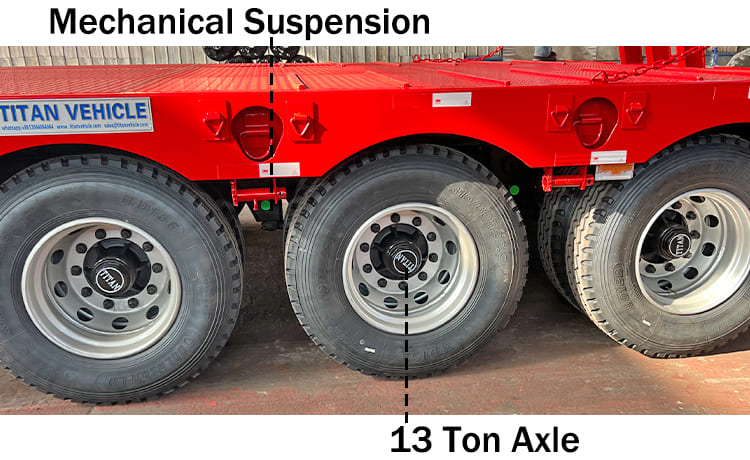

The mechanical suspension system of the low loader trailer for sale is engineered specifically for rough terrain and high-temperature environments. Constructed from heavy-duty steel, the suspension incorporates a 70 mm center balance pin and reinforced side brackets to improve load distribution. This configuration enhances shock absorption, reducing vibration caused by potholes, gravel roads, and uneven surfaces, while protecting both cargo and the low loader trailer structure.
Supporting ground stability, the tri axle low loader trailer for sale is fitted with robust landing gear capable of handling dynamic and static loads during loading, parking, and maintenance. Its wide base spreads ground pressure evenly, minimizing the risk of sinking on soft or uneven surfaces often encountered in work sites across Guinea.
Braking performance is another key safety component. The low loader trailer uses heavy-duty brake pads that deliver strong and responsive stopping power under full load. High-pressure rubber brake hoses extend service life, while reinforced electrical wiring ensures consistent signal transmission even in harsh operating conditions. This integrated braking system supports safe transport operations for the low loader trailer for sale on demanding routes.
Before shipment, each tri axle low loader trailer for sale receives comprehensive export protection. Anti-corrosion wax is applied to exposed metal surfaces, followed by full wrapping with waterproof materials. This dual-layer protection shields the low loader trailer from moisture and salt air during sea transport, ensuring it arrives in Guinea ready for immediate use.
